Work

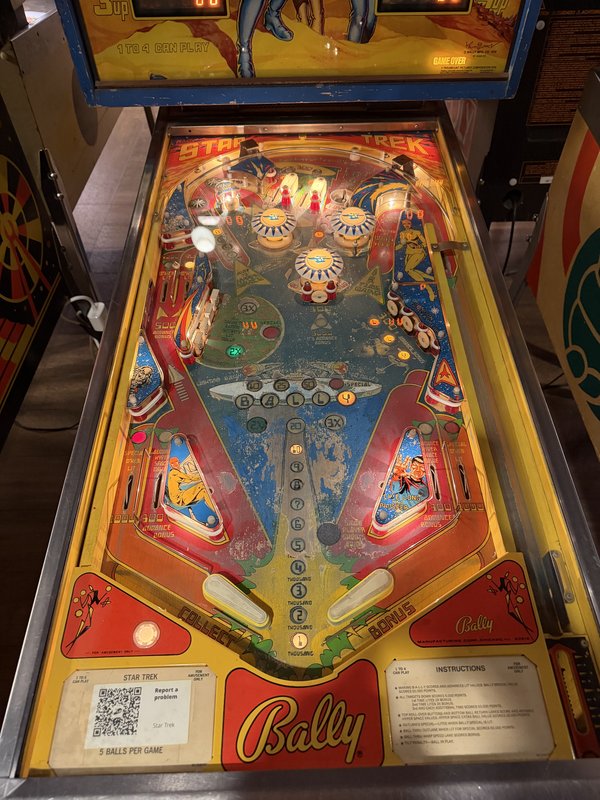

🎉🎊 Star Trek has moved to the floor!
Work
Location changed: Floor → Majik Street
Work
Worked both in switch test and live play.
Work
GI problem was all bulb and socket issues. Replaced every flaky bulb and cleaned any socket that was still sus with alcohol. Total of 15 bulbs replaced.
Problem
Closed
Minor
Left outlane switch doesn’t notice ball
Problem
Closed
Minor
G.I is out. Nudging and flipping turns it on brighter but still low
Work

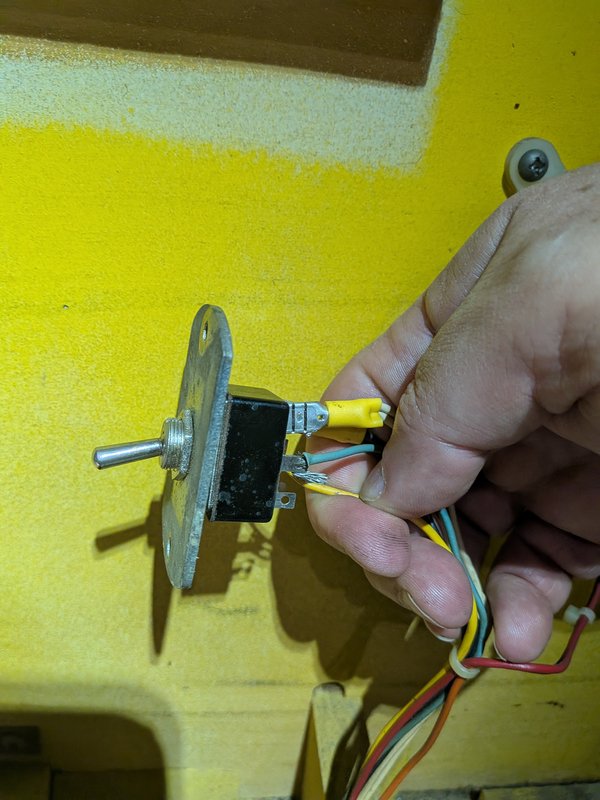

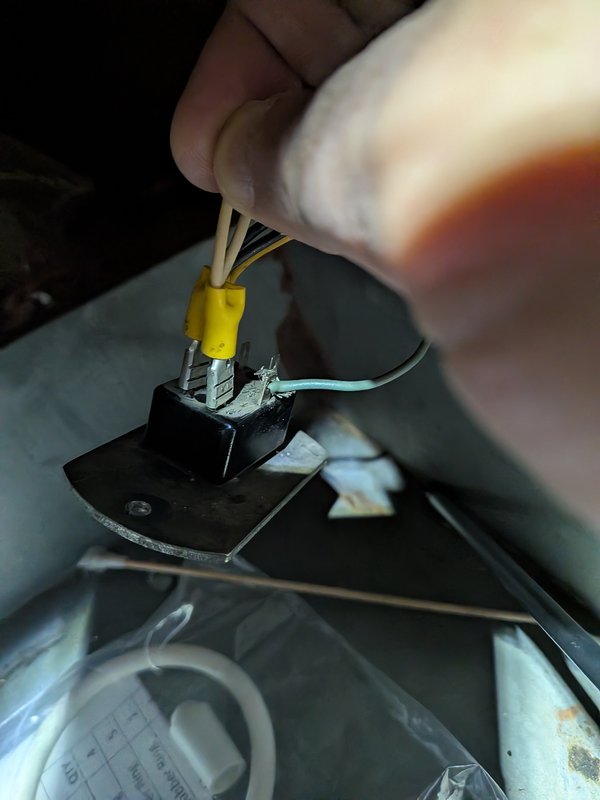

Power switch is DPST. Marked 5A 125V, 3A 250V. 0.45" diameter, about 0.5"length of thread. Mounted on plate about 0.09".
Work
Identified that connector P3 on solenoid driver board is intermittent, and reboots if you wiggle it. It contains the 5V line to the MPU board. We should replace the connector and see if it still restarts after that.
