Good Museum Report
All Activity Problems Logs Parts
Work

Fixed by turning potentiometer

Closed Problem: Machine no longer talking, but still has other sounds. Customer who was familiar with the machine pointed out that there are two separate potentiometers controlling the volume of the sounds and talking (could be issue?)
Work

Showed guest the start button is the metal button on the front of coin door. We should probably make a sign/modify the game to add a credit with start button

Closed Problem: Appears to be stuck on match screen, pressing start button doesn’t begin new game
Work 0.3h ·

Ball still got stuck sometimes on the temporary post. Replaced it with a 1" elastic across two posts. Problem seems resolved.

Playfield is slightly warped. Level in the middle is about 0.5 degrees to the right on top and 0.5 degrees to the left on the bottom.

Closed Problem: Game was abandoned because ball was stuck. Looks like there was some sort of missing post. I swapped in a spare star post. Fixing this requires figuring out what used to be there, getting one, and putting it in
Work

Leveled playfield.

Work

Applied contact cleaner to both potentiometers and turned them a bunch. Both speech and sound effects seem good. Note that this one also has a volume knob inside the coin door, so the pots should only be used to adjust voice vs effects.

Closed Problem: Playing volume level erratic. When not playing, low crackles from speaker
Work

Ordered contact cleaner.

Closed Problem: Playing volume level erratic. When not playing, low crackles from speaker
Work

Cleaned play field

Work

Replaced pop number cap on top right, and top left, swapped player 3 and 4 displays and they work now

(Replacement LED display was dim, probably by design, but in troubleshooting Nick discovered swapping 3 and 4 fixed it, perhaps had been loose?)

Tuned left slingshot

Work

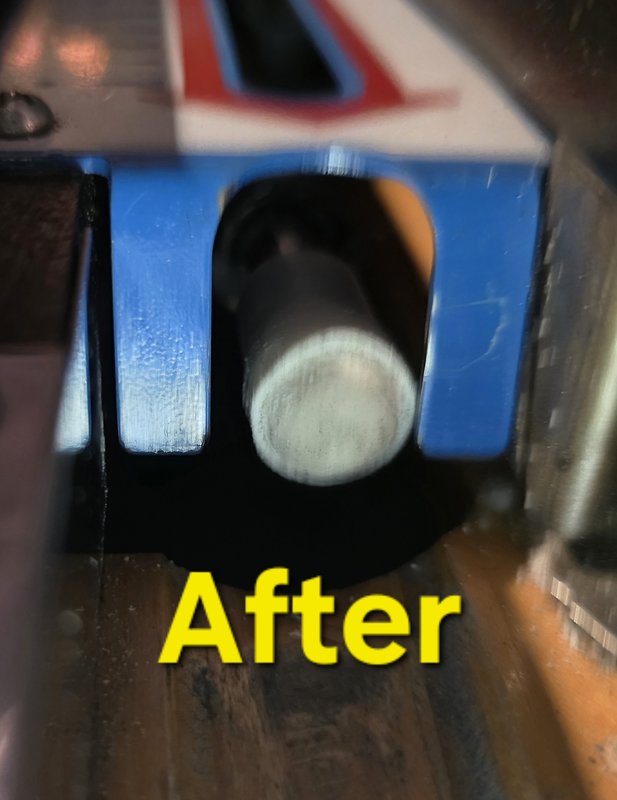

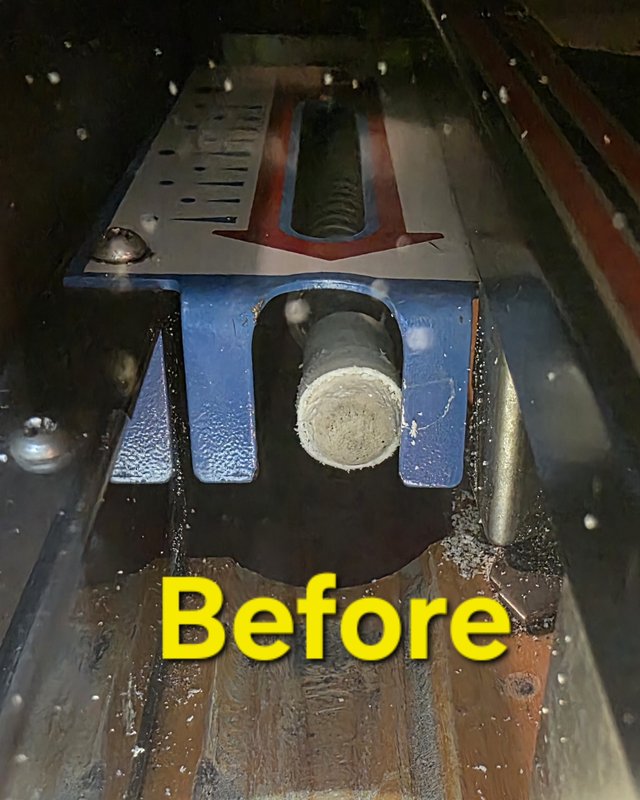

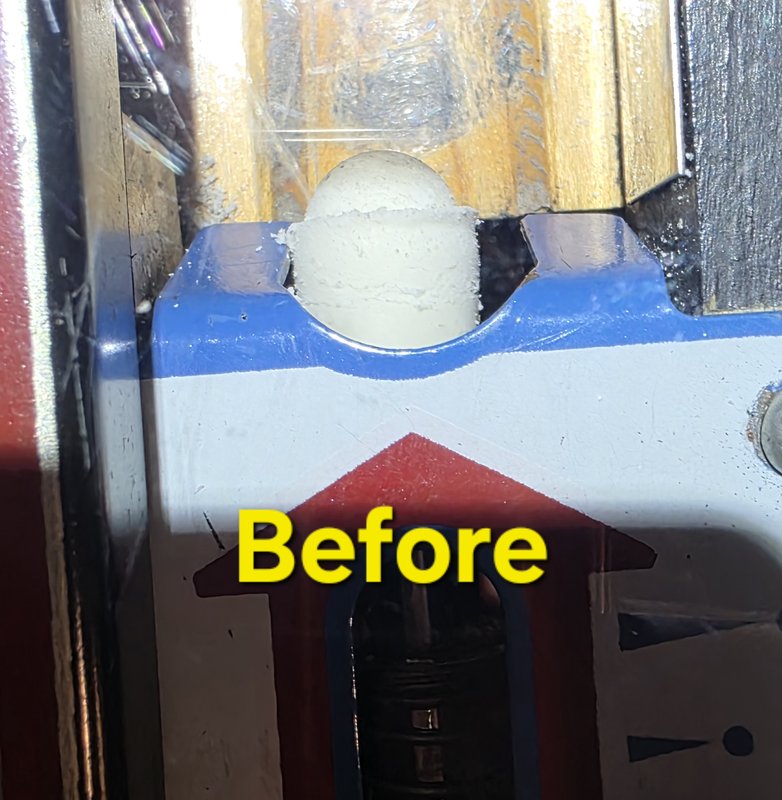

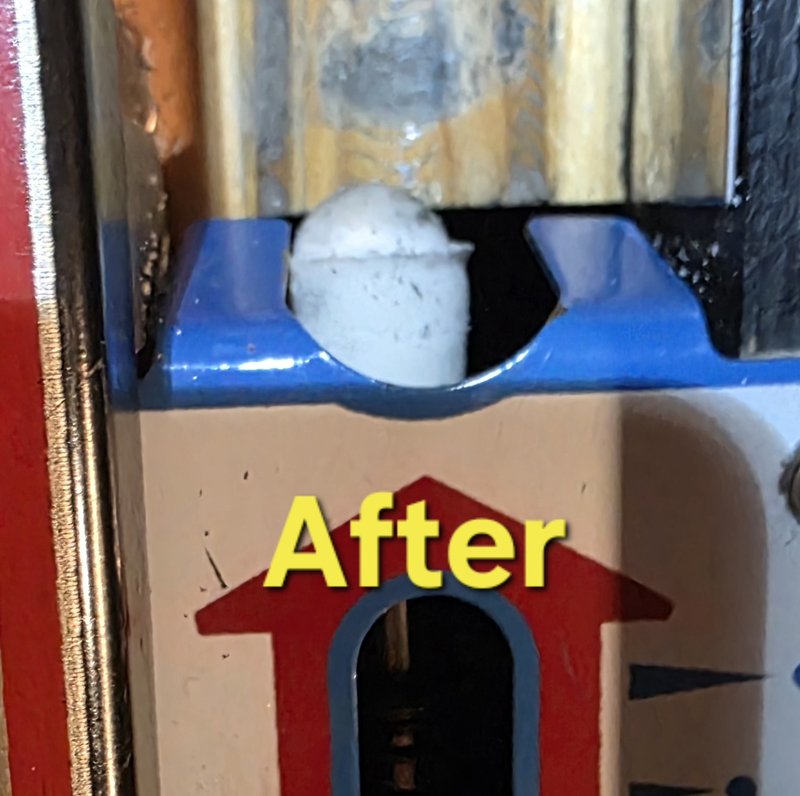

Replaced 1 Ball spring to hopefully fix sticking up dropdown target
