Aztec (EM) (M0023)

Williams · 1976

Good Museum

Report Problem

Maintenance

Clean the playfield Unknown
Replace the balls 1 day, 6 hours ago
Check/replace elastic bands Unknown
Check/replace lights Unknown

All Activity Problems Logs Parts

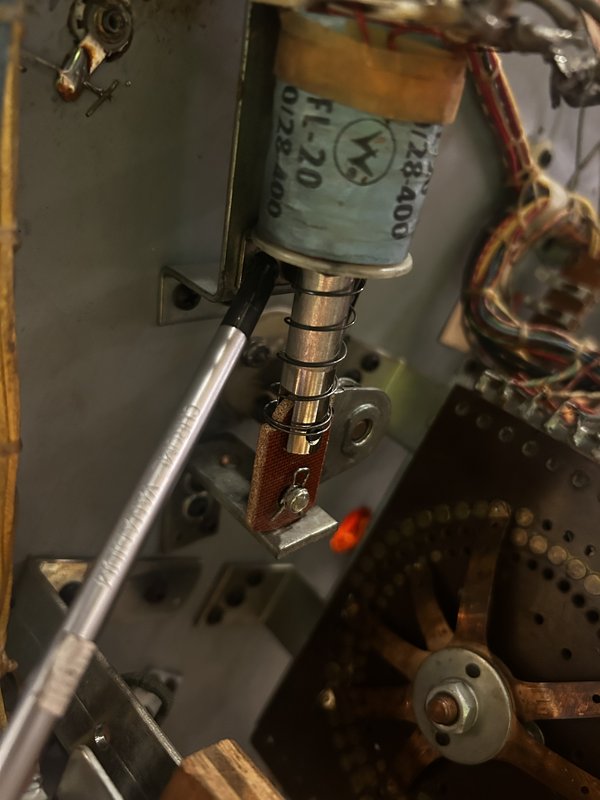

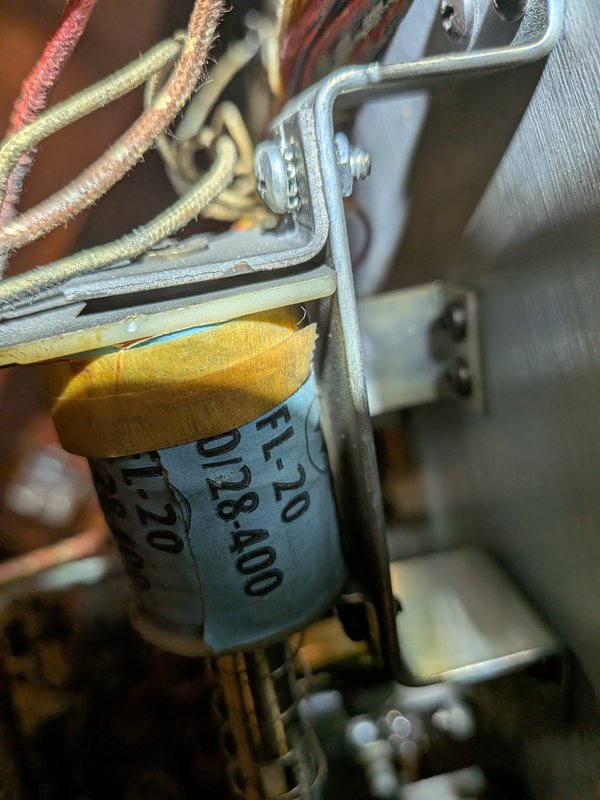

Flippers were kinda floppy, so I replaced the flipper linkages, which were worn. Regapped the right EOS switch so it opened later, making that flipper stronger. Used fancy new alignment tool to angle flippers properly.

Chime unit grommets were incredibly decayed. Replaced them. Sound is better, and they should no longer shake themselves apart. But we should also try adding the grommet spacers.

Fixed flipper and tightened both

Closed Problem: Right flipper non functional

Right flipper non functional

Latest: Fixed flipper and tightened both

Flippers were uneven. Adjusted.

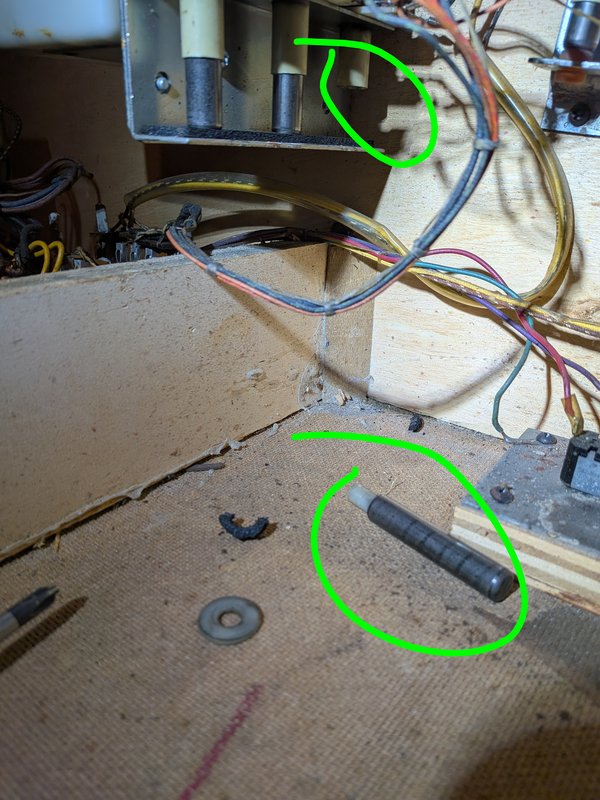

Chime solenoid had ejected itself. I replaced it and everything was fine.

I also have ordered new chime grommets as the existing ones have decayed.

Closed Problem: 1000 point chime not sounding, solenoid is not firing

Closed problem report

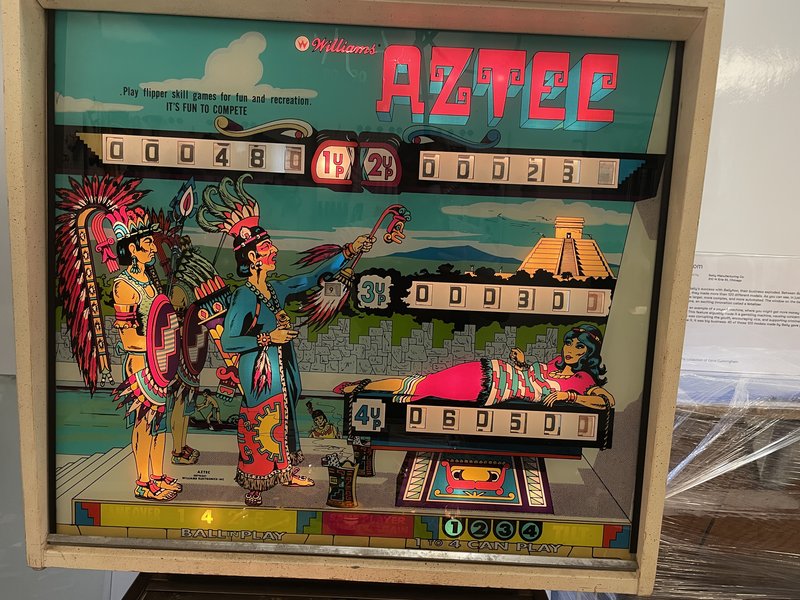

Closed Problem: Some backbox lights are out, for example Ball 2. Note: there are instructions inside the backbox for getting at its display front.

Cannot reproduce.

Closed Problem: Scoring does not work as it should. For example, Player 2 scores that should increment by 500 when the center target is hit may only increment by 300. Other scoring sensors give a sound or reaction but no score increment.

Closed problem report

Closed Problem: Top left rollover switch appears to be triggering the tilt relay

Closed problem report

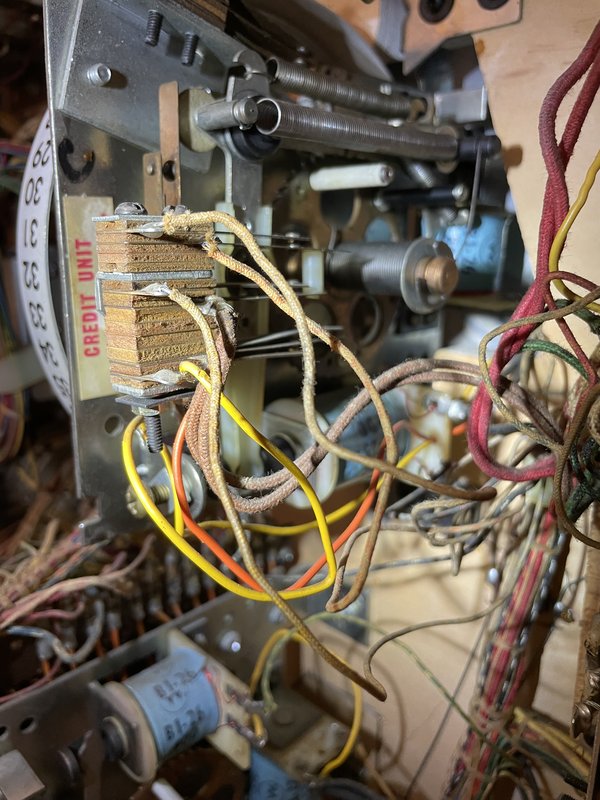

Closed Problem: When out of credits, white bar depresses and opens both leaf springs shown in photo. To get infinite credits, must keep connection going. Seems like best option may be to desolder the solenoids so the wheel stops spinning? Other suggestions were to solder the leaf springs connections together, but that allows the wheel to spin which may break something. Unsure how to proceed
