Carom · The Flip

Unknown Workshop Report

All Activity Problems Logs Parts

Status changed: Ordered → Received

Received Part Request: https://www.menards.com/main/hardware/fasteners-connectors/specialty-fasteners/springs/midwest-fastener-reg-1-4-x-2-7-16-zinc-extension-spring-1-count/88052/p-1444440208368-c-9553.htm 8 springs to replace in Carom. These look to be suitable replacements

Status changed: Requested → Ordered
Menards order 70581069

Received Part Request: https://www.menards.com/main/hardware/fasteners-connectors/specialty-fasteners/springs/midwest-fastener-reg-1-4-x-2-7-16-zinc-extension-spring-1-count/88052/p-1444440208368-c-9553.htm 8 springs to replace in Carom. These look to be suitable replacements

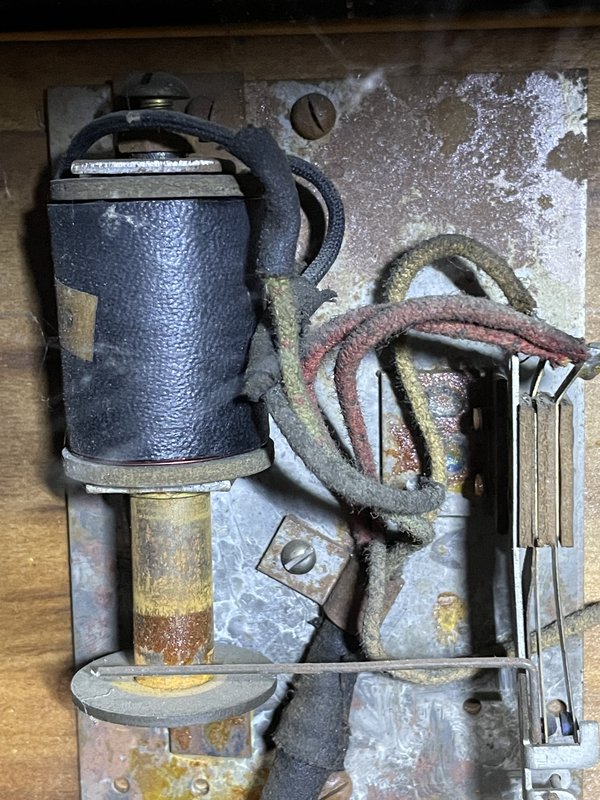

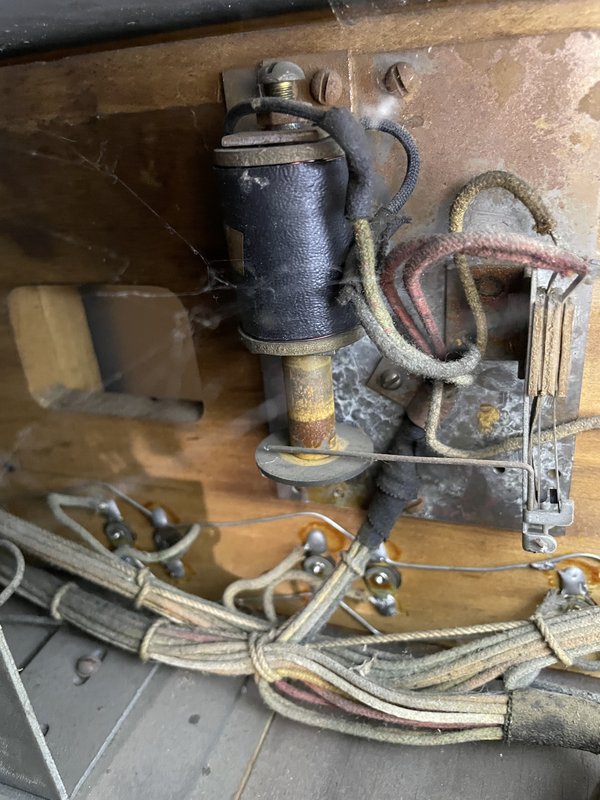

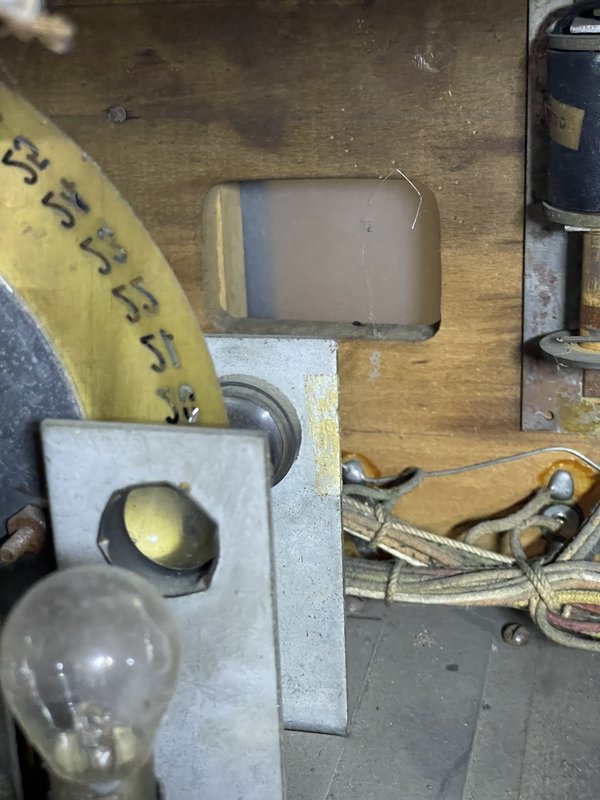

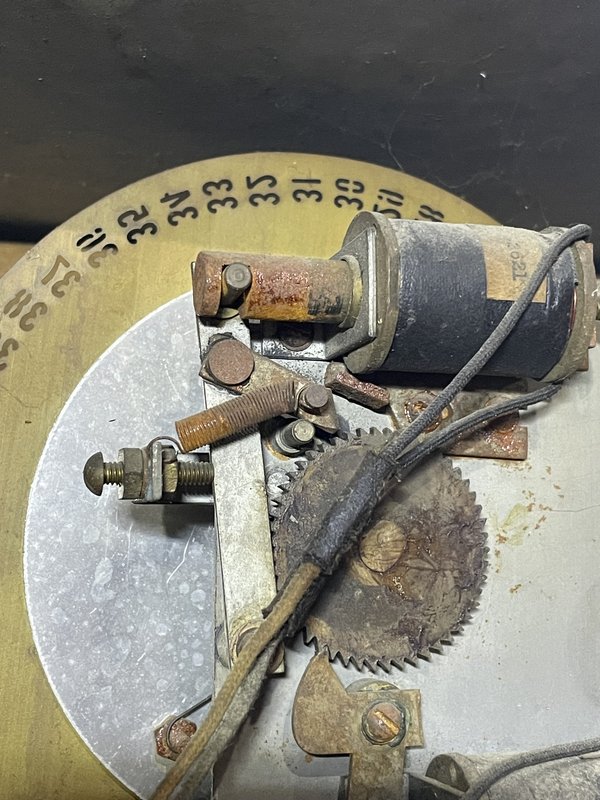

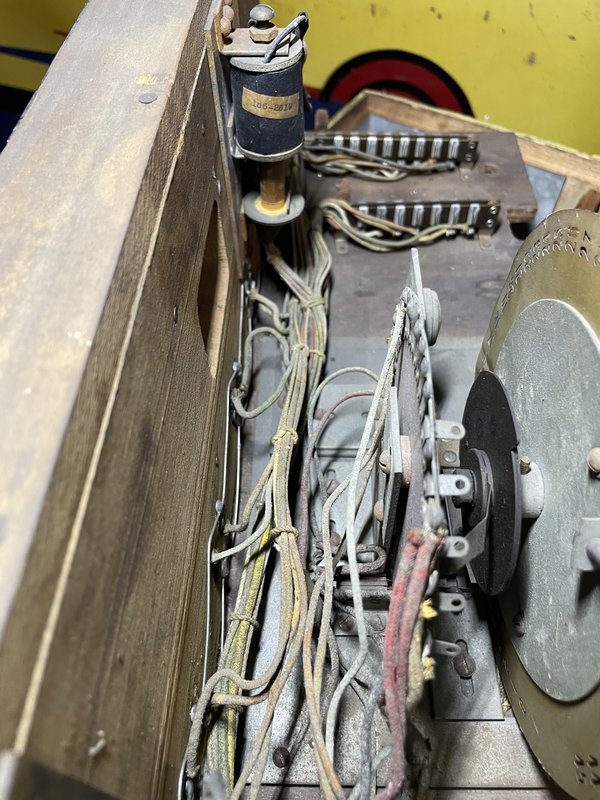

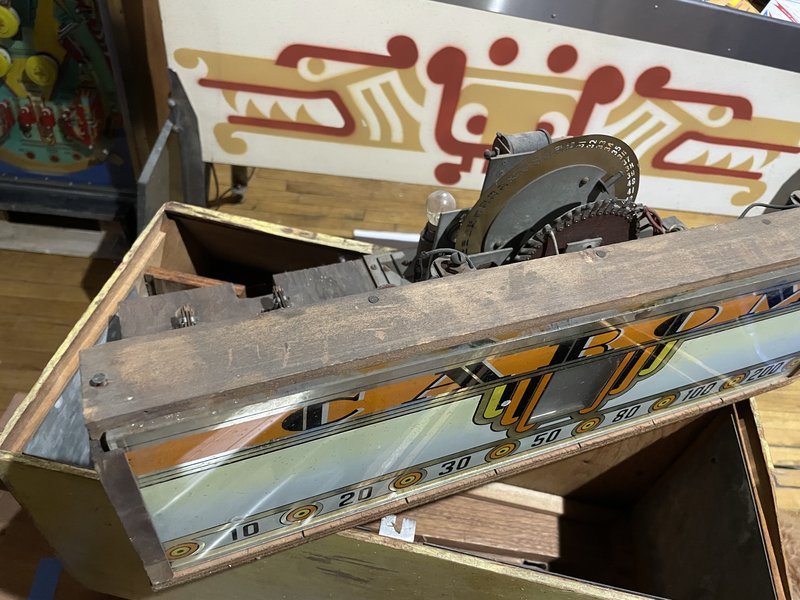

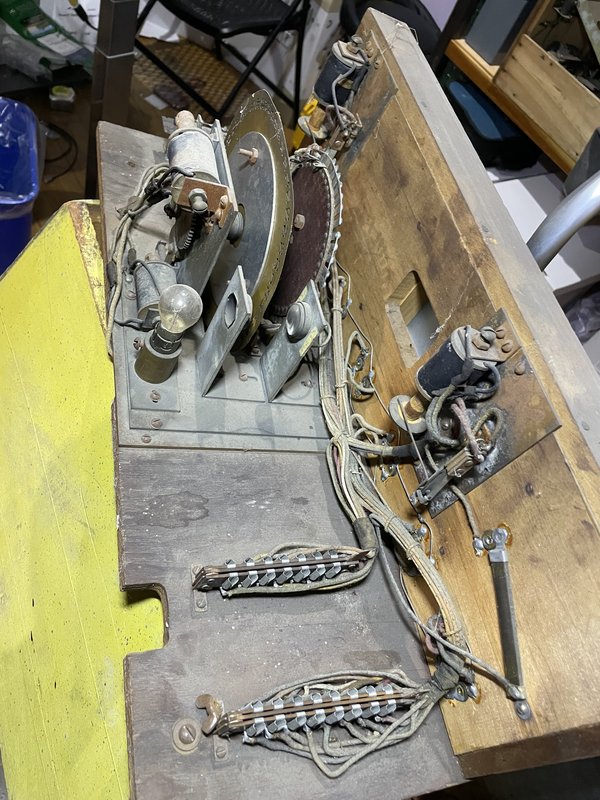

Test score wheel rotation. Does it rotate smoothly? Solenoid is obviously bad

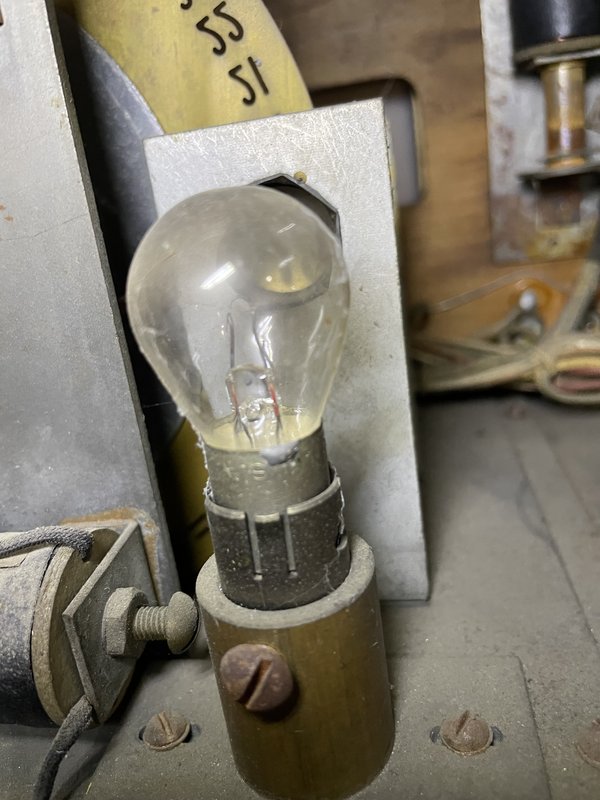

Test lamp, identify bulb type.

Use variac for testing.

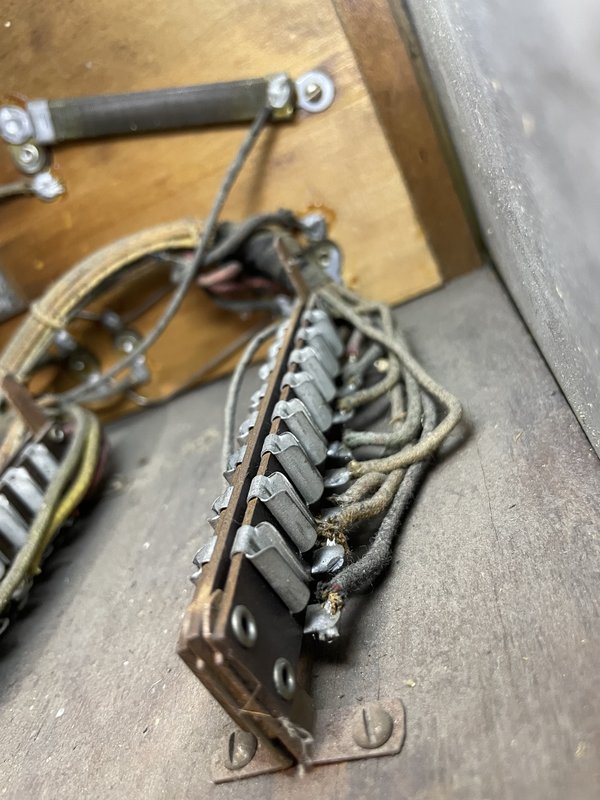

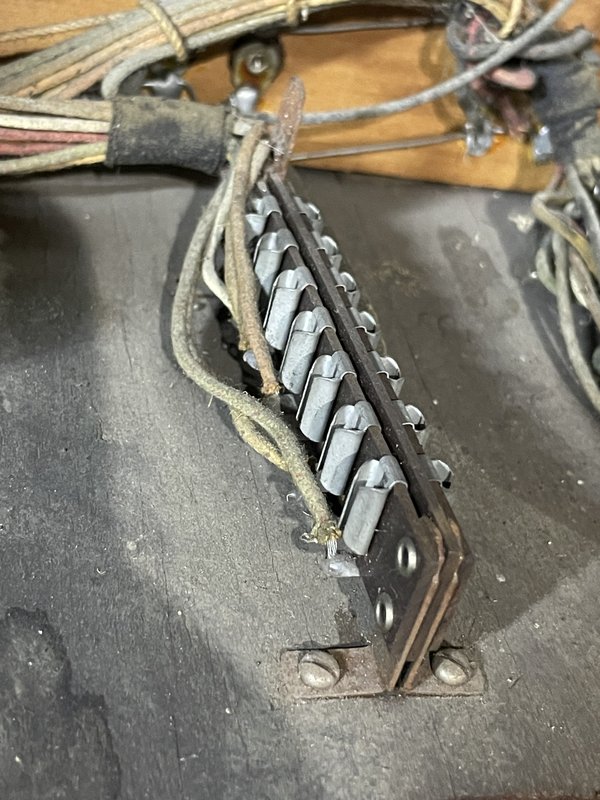

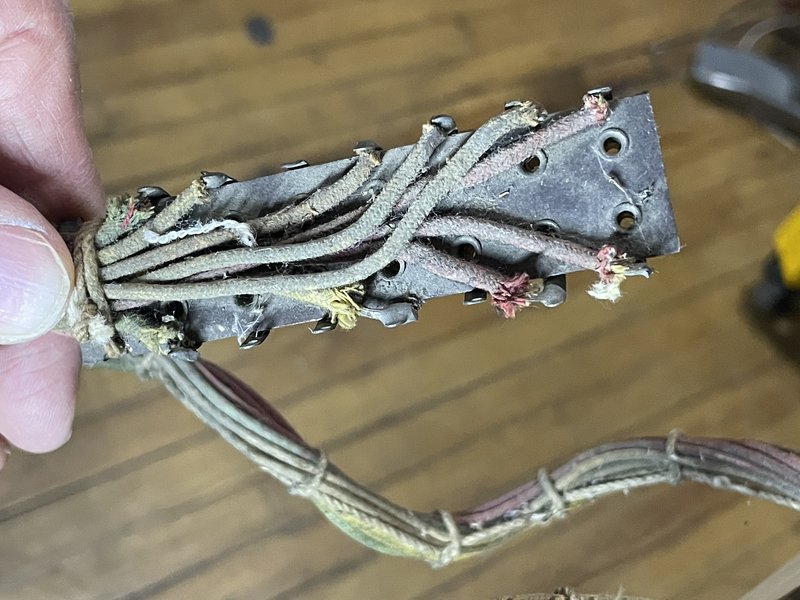

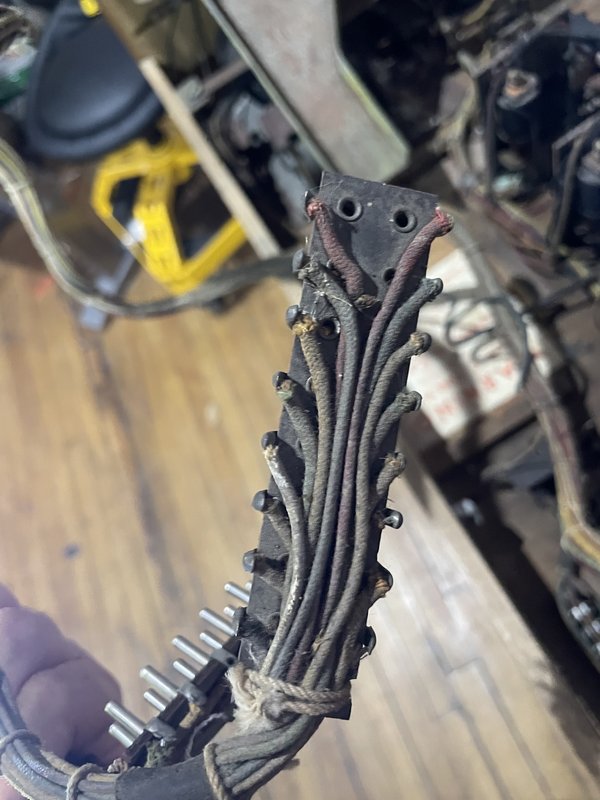

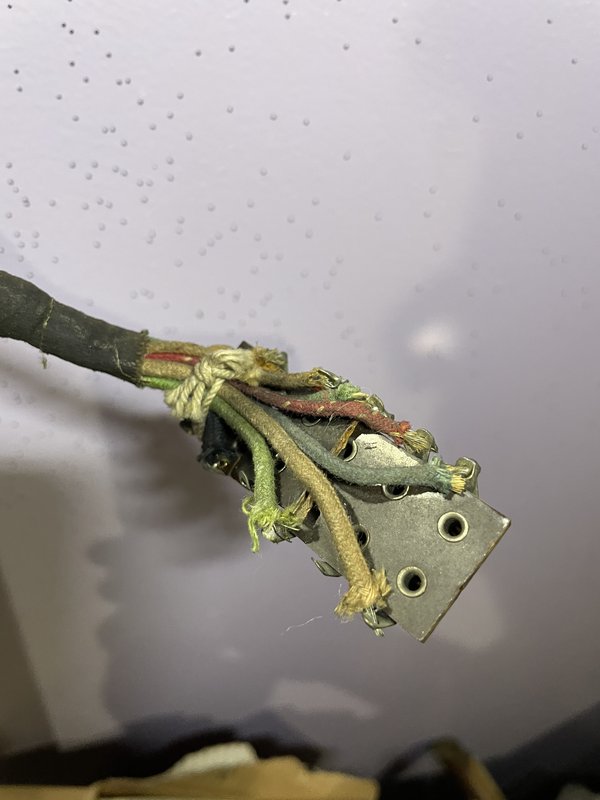

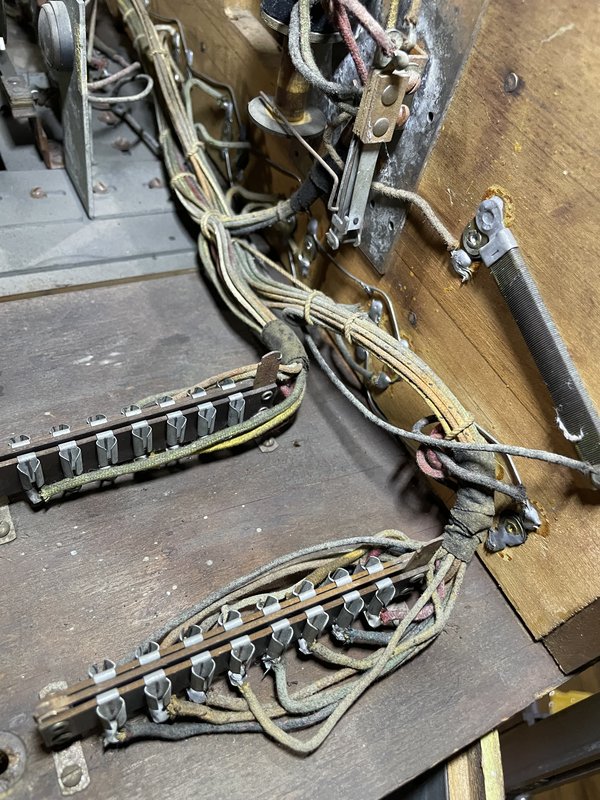

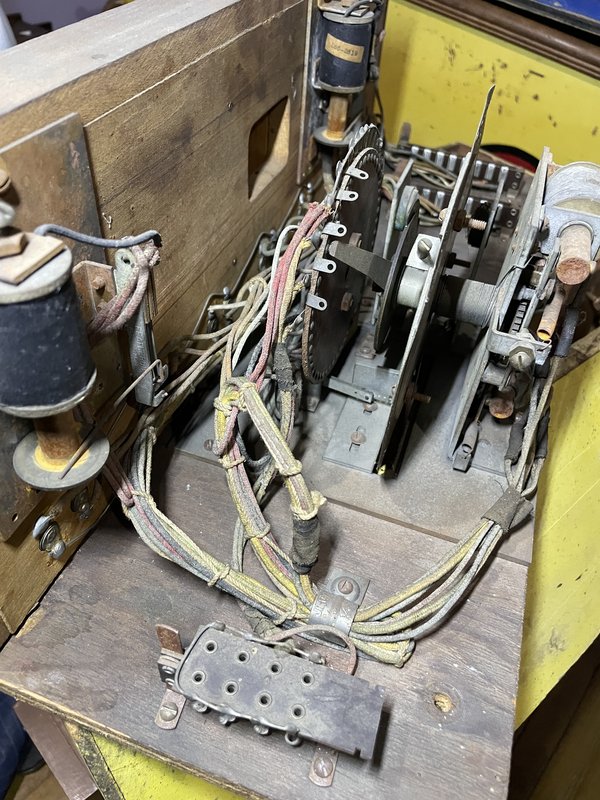

Check Jones plug connectors. Look for visible problems. Then connect them and test continuity for each

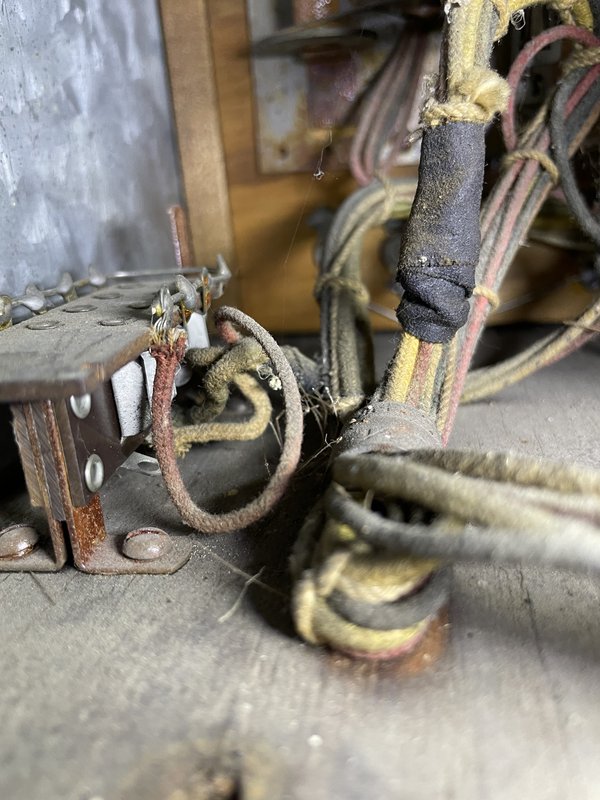

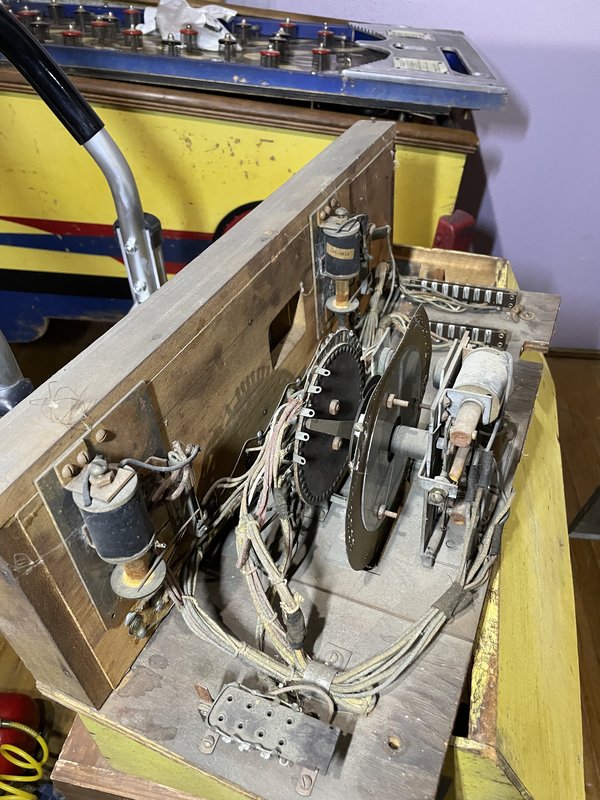

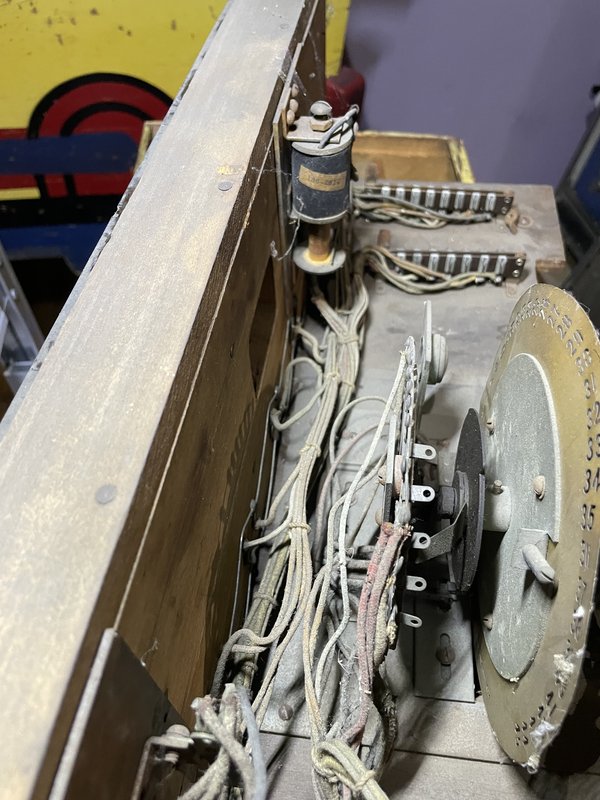

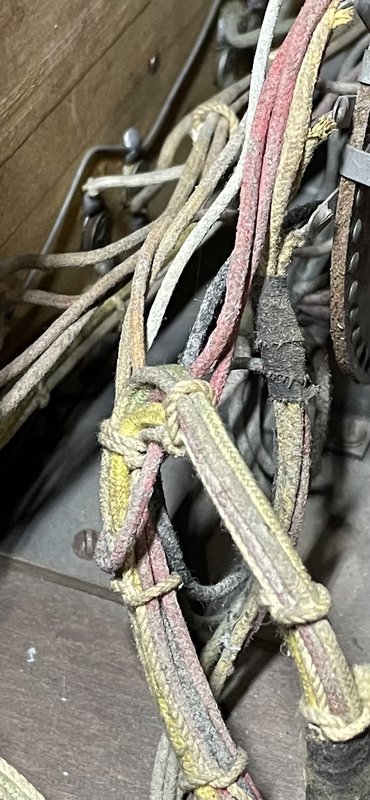

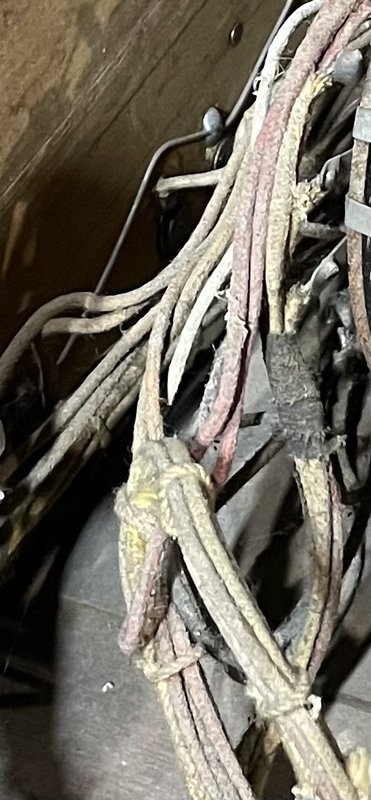

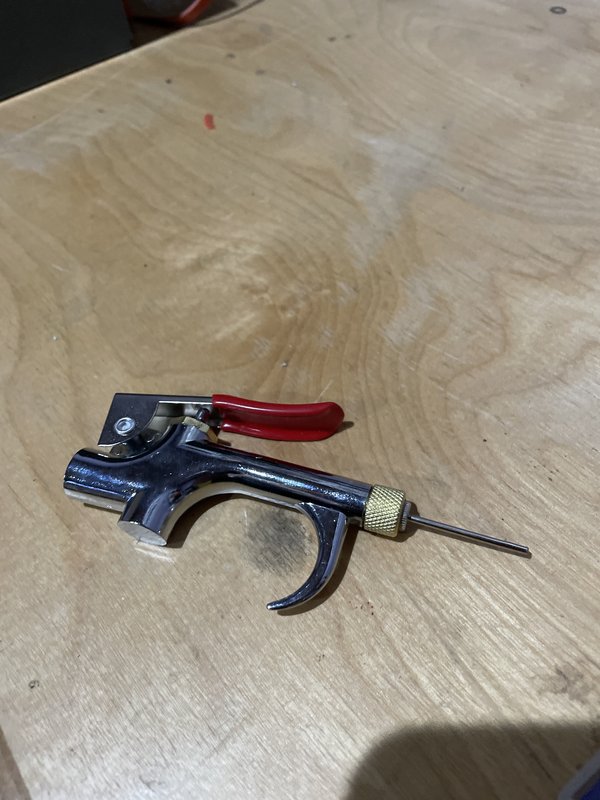

Use ~100psi compressed air outdoors to clean dust off control cabinet wires and score cabinet wires

110V compressor is in workroom

Wear goggles and a dust mask

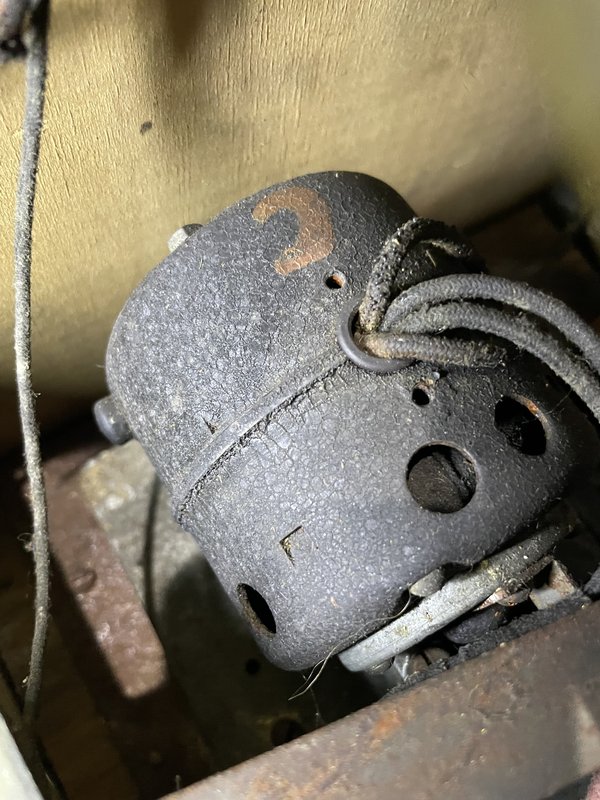

Test motor using variac

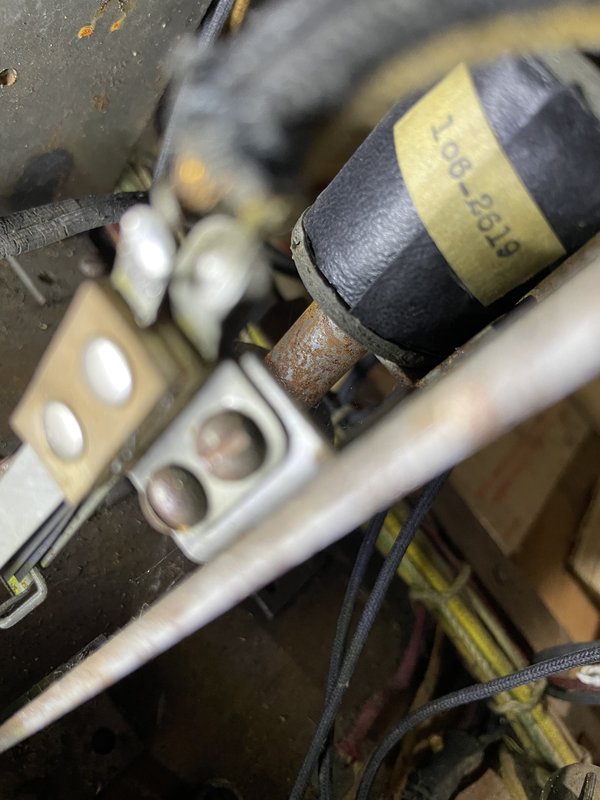

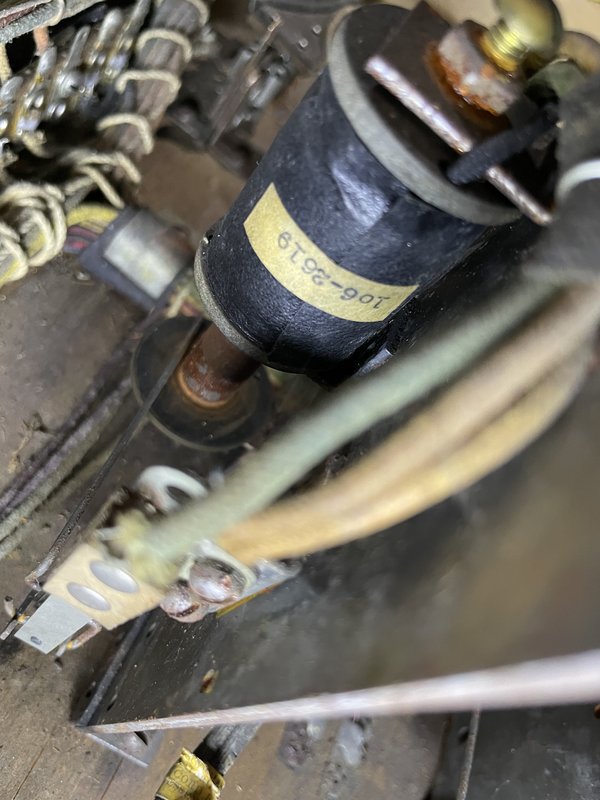

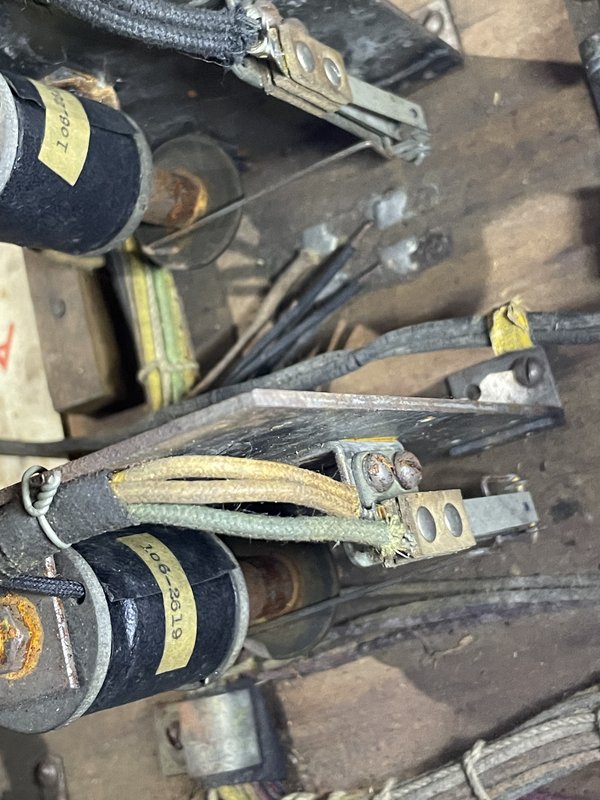

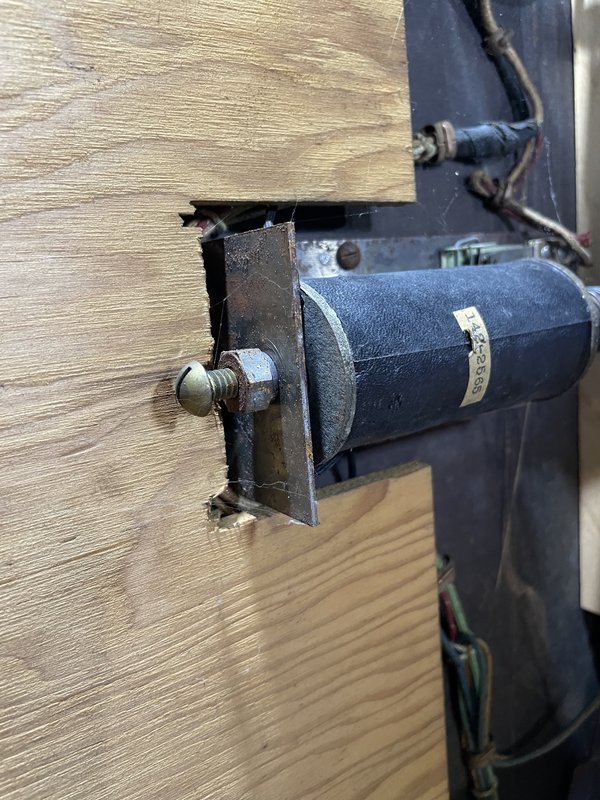

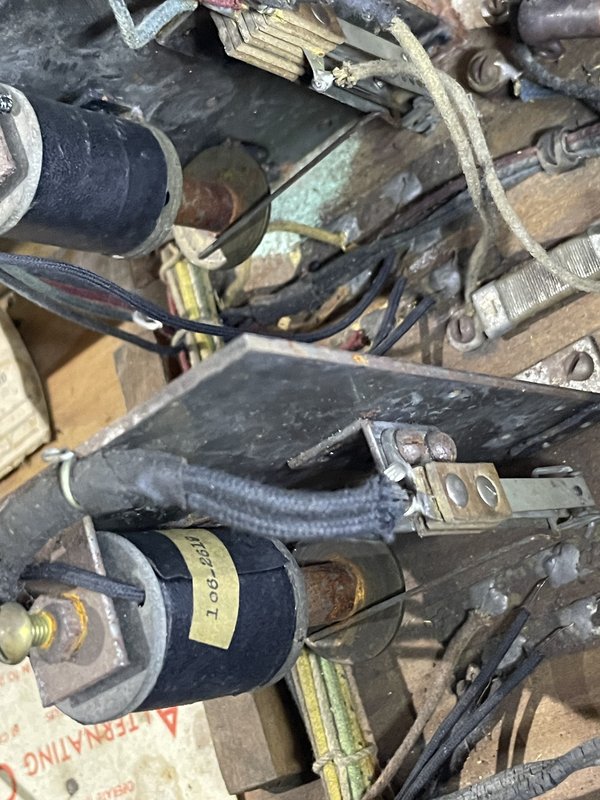

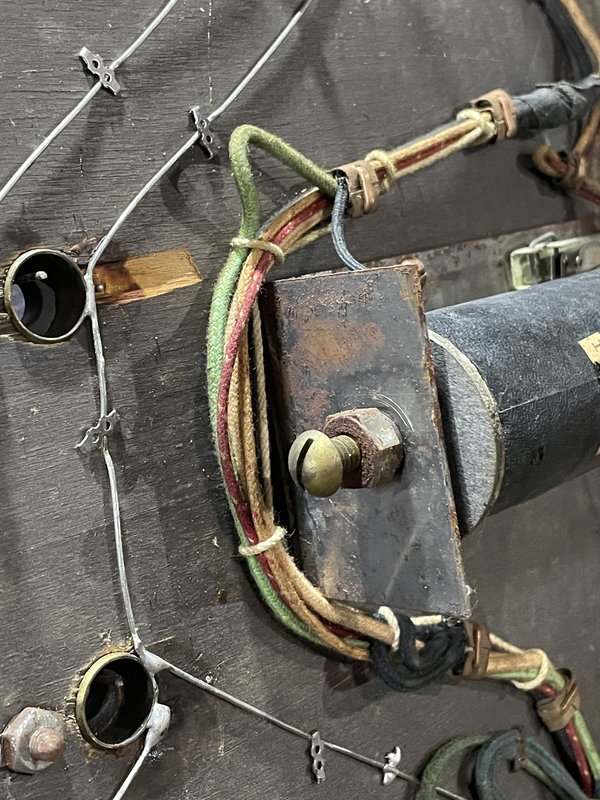

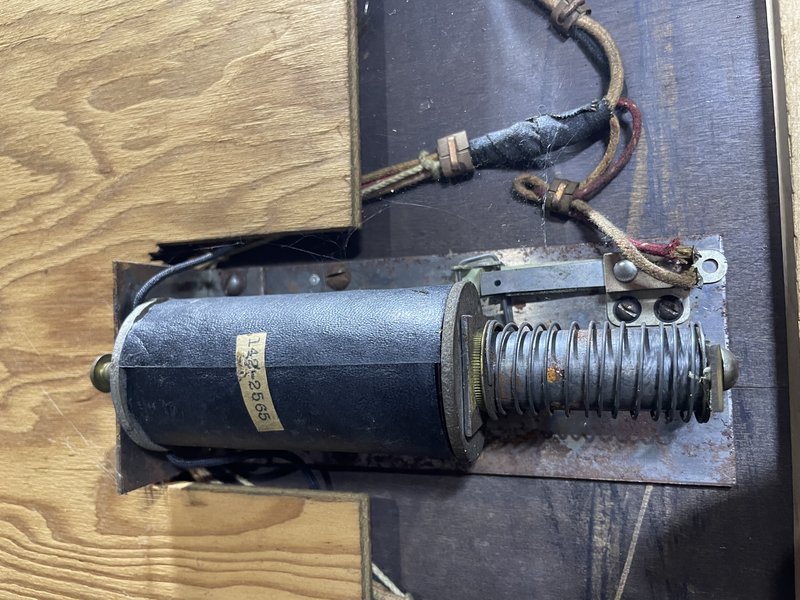

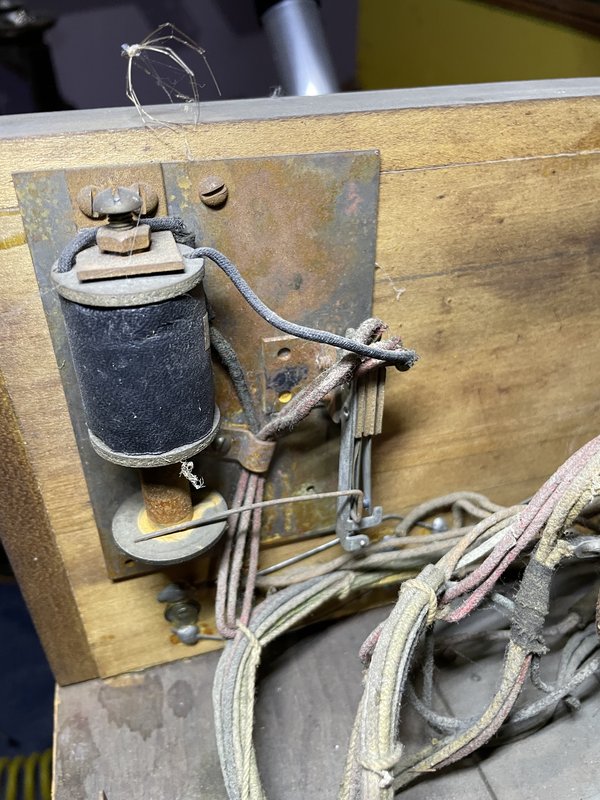

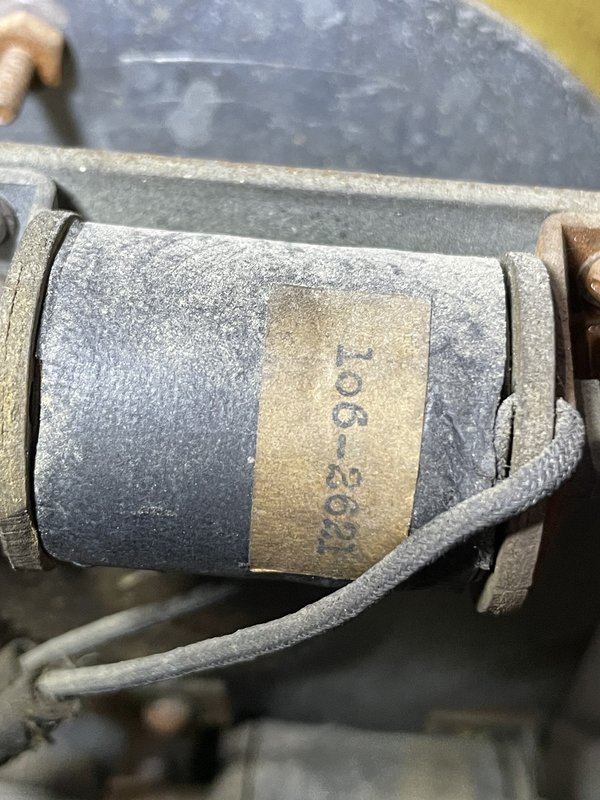

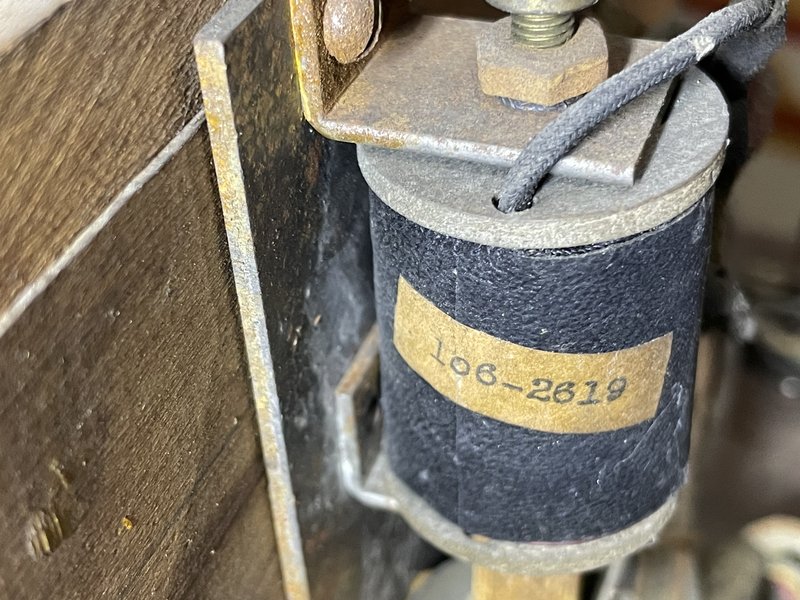

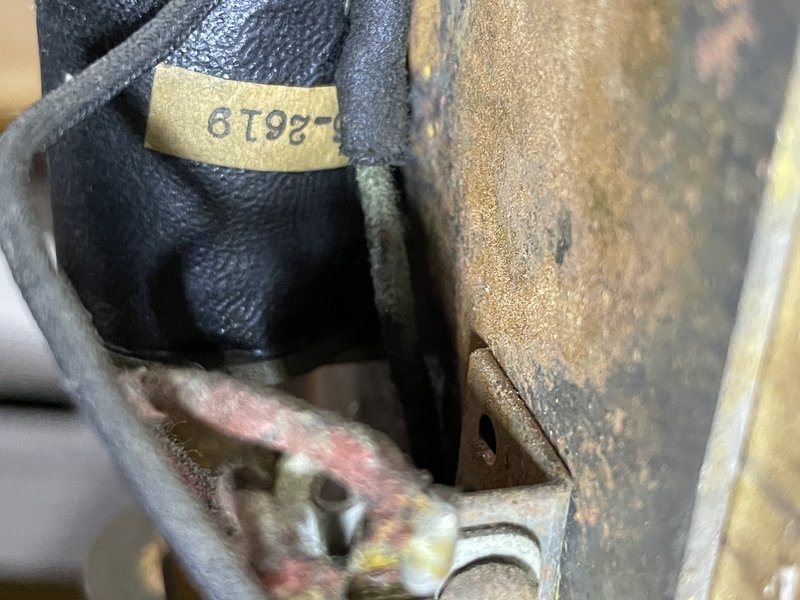

Identify solenoid types. Only a few have visible labels.

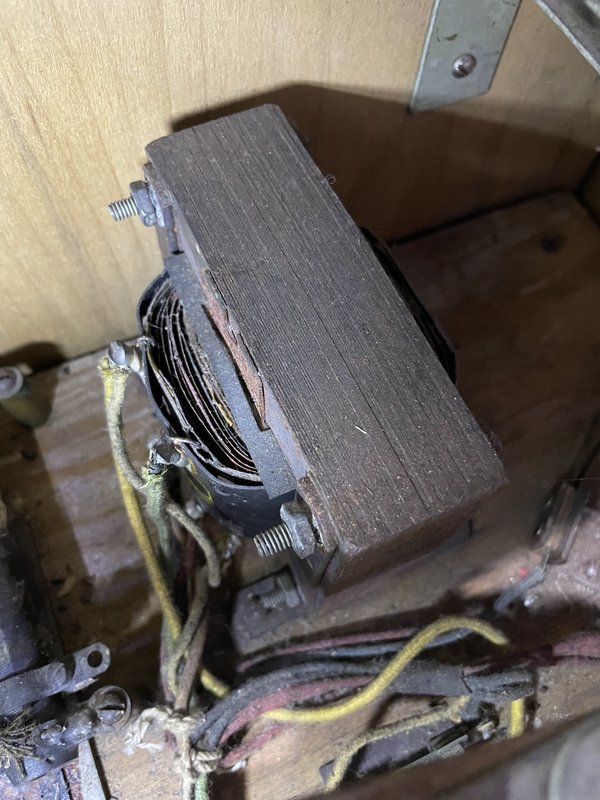

Test transformer

Wiped and polished springs and guides as best as I could, but there’s still significant corrosion

Closed Problem: Playfield guide springs are rough and need polishing
