Closed Major Indiana Jones
Description

No power on the 20 volt rail

Media

No media.

Log Entries

Log Entry 0.5h ·

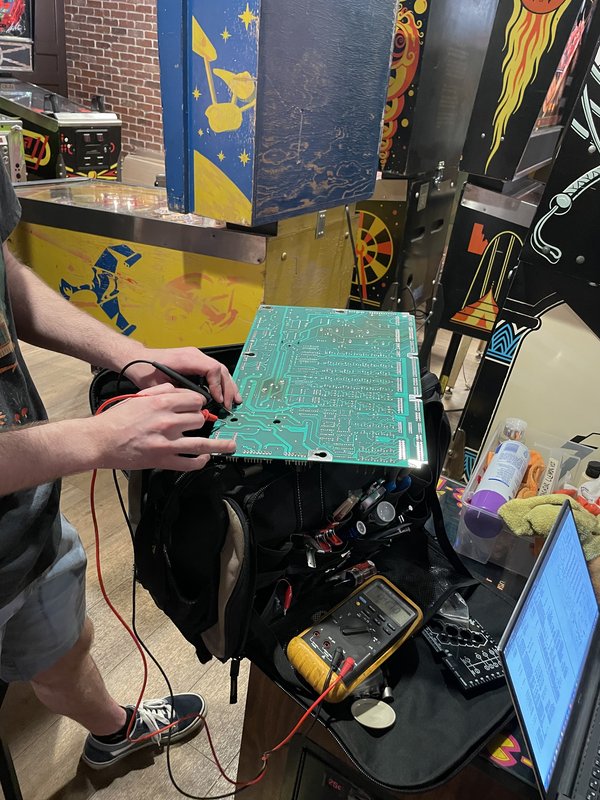

Found fuse F111 also blown. With power board removed, Caleb showed us how to test each diode in each bridge rectifier using the diode mode on a multimeter.

Consistent with this, bridge rectifier BR4 has a bad diode.

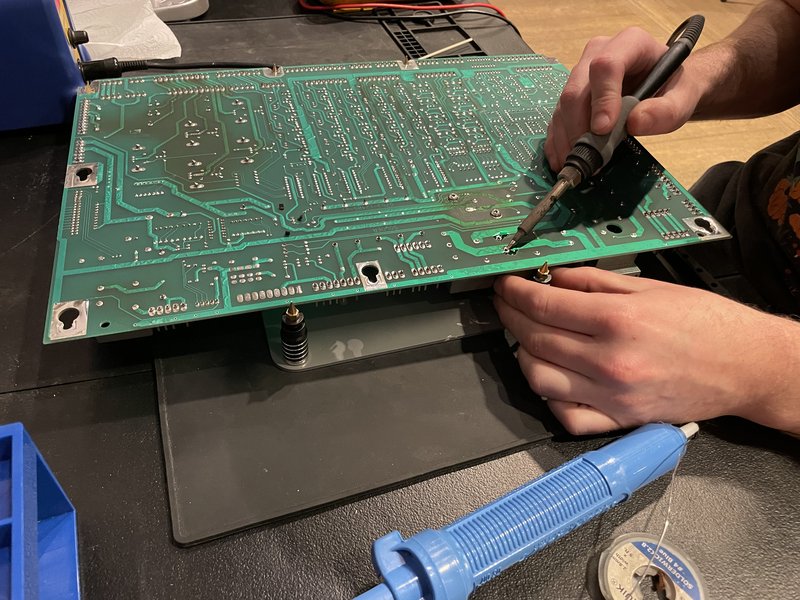

Caleb detached the bad rectifier and new parts are on order
